Case Study

Client: WHP

Scope

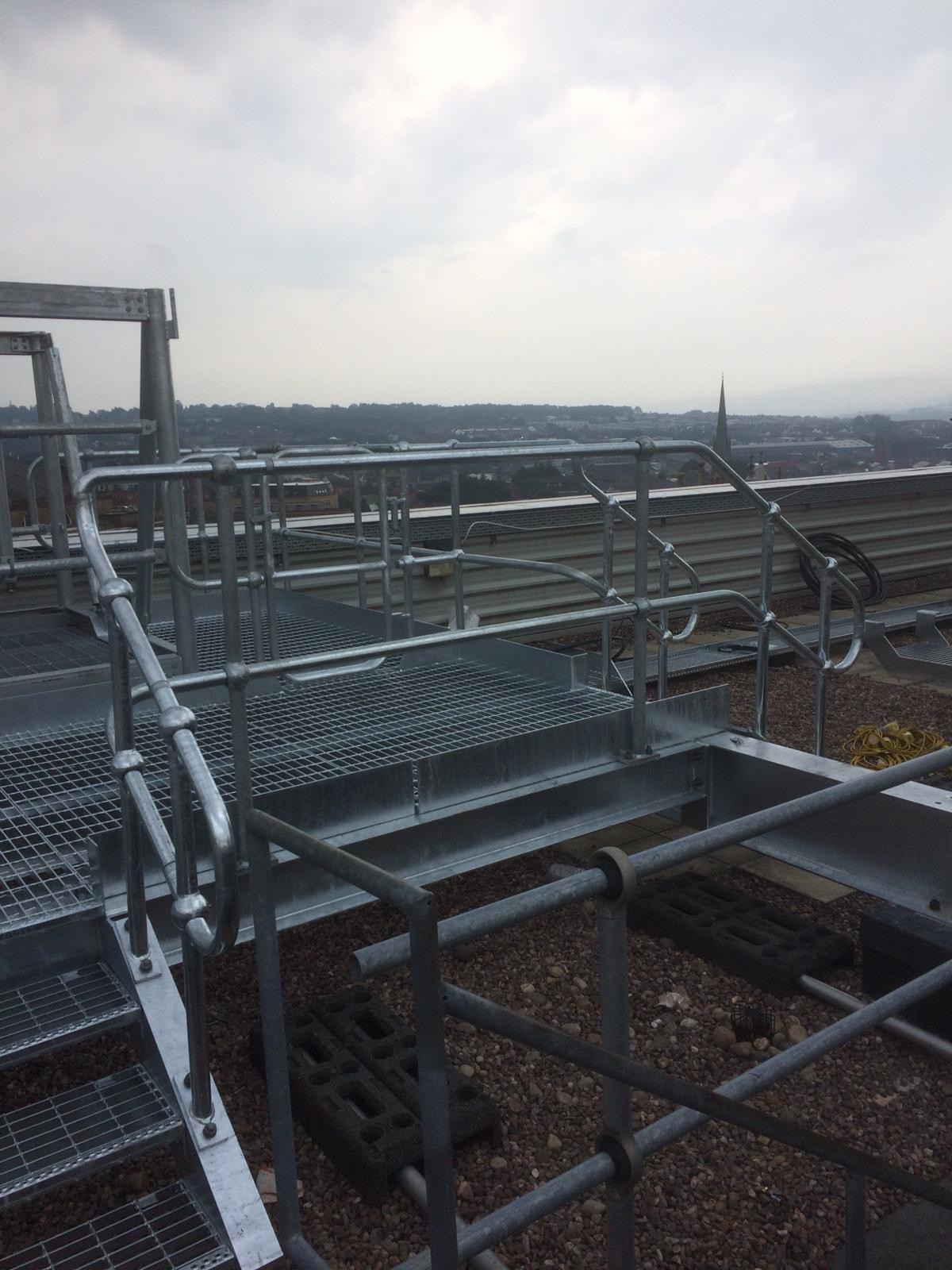

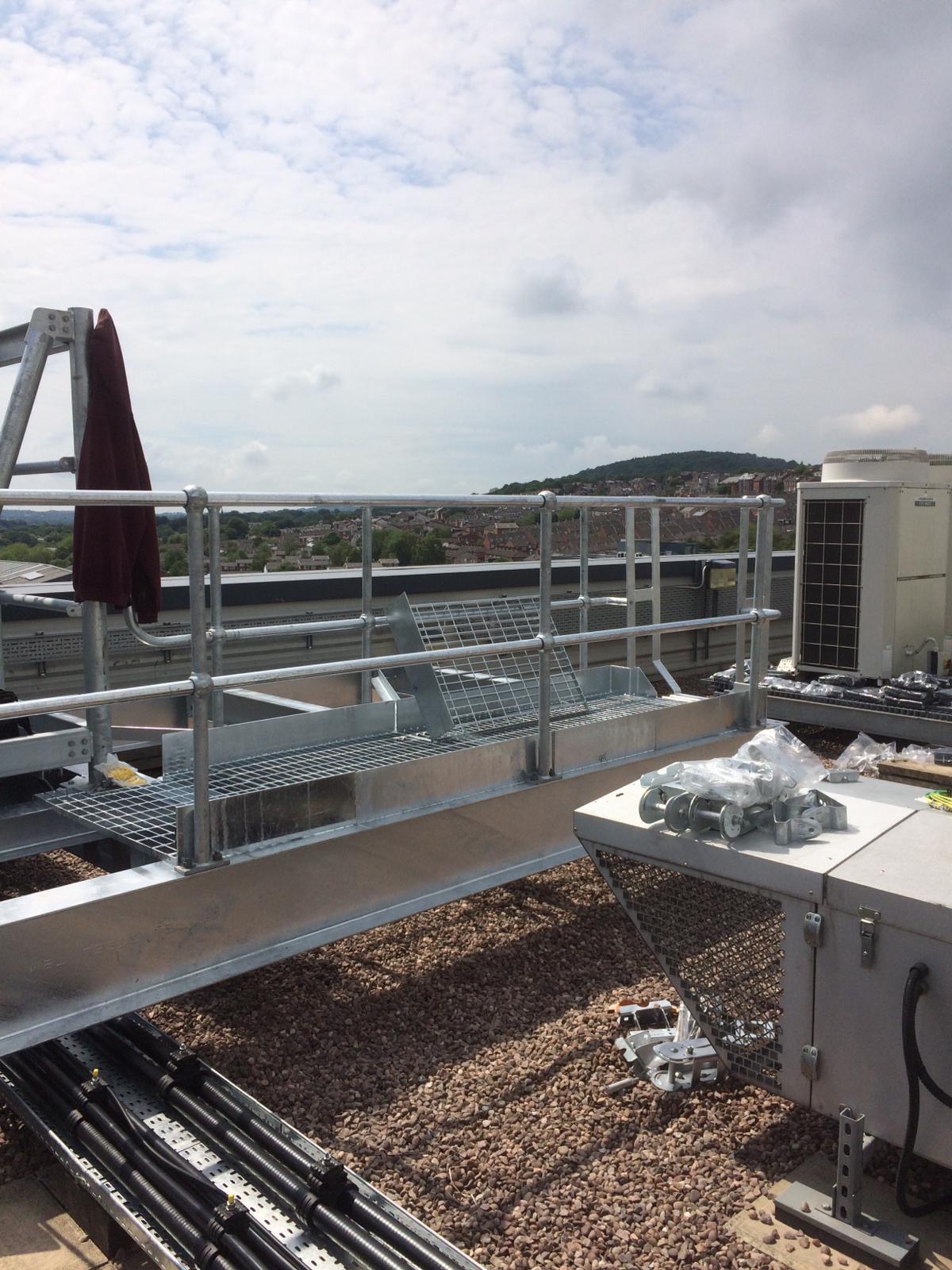

Procurement, fabrication and installation of the following:

Description

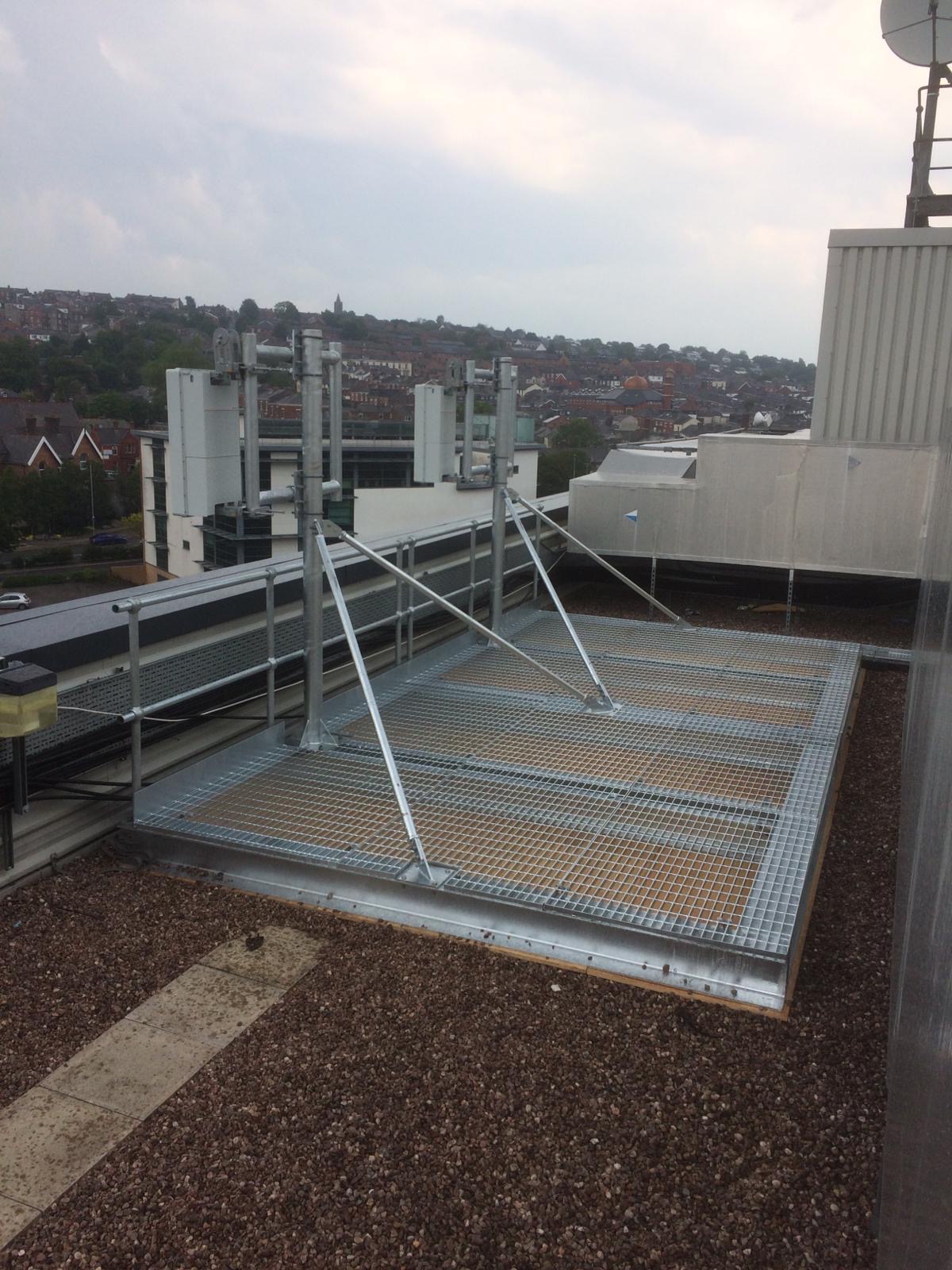

-Supply & installation of Grillage for Sector A to include for land and bolt down roof pod pre-built off site



-Supply & installation of Grillage for Sector B to include for land and bolt down roof pod pre-built off site



-Supply & installation of 2No- free standing supports for Sector C complete with tripod antenna. Free standing mounted supported on 18 mm external ply

-Supply and installation of 1No- free standing step over



-Supply & installation of 2No- 76.1 x 5 mm poles x 1500 mm long as per drawing 504 issue I1 bolted to top of beams existing mesh cut required to allow installation



-Supply & installation of 2No- 76.1 x 5 mm poles x 1500 mm long as per drawing 504 issue I1 bolted to top of beams, existing beams drilled as required to allow installation

-Fabrication and installation of 3No- step overs complete with slabs & rubber



-Supply Only of 1No- Antenna yolk for tower, based on 2No- 76.1 x 5 mm poles x 2000 mm long complete with PFC supports to clamp to main tower



-Flooring panels to be 25 x 5, 41/100 pattern, handrails complete with 42 mm rails, 150 x 6 flat kick plates. Works based on CE Class 2 specification
