Case Study

Client:

Scope

Procurement, fabrication and installation of the following:

Description

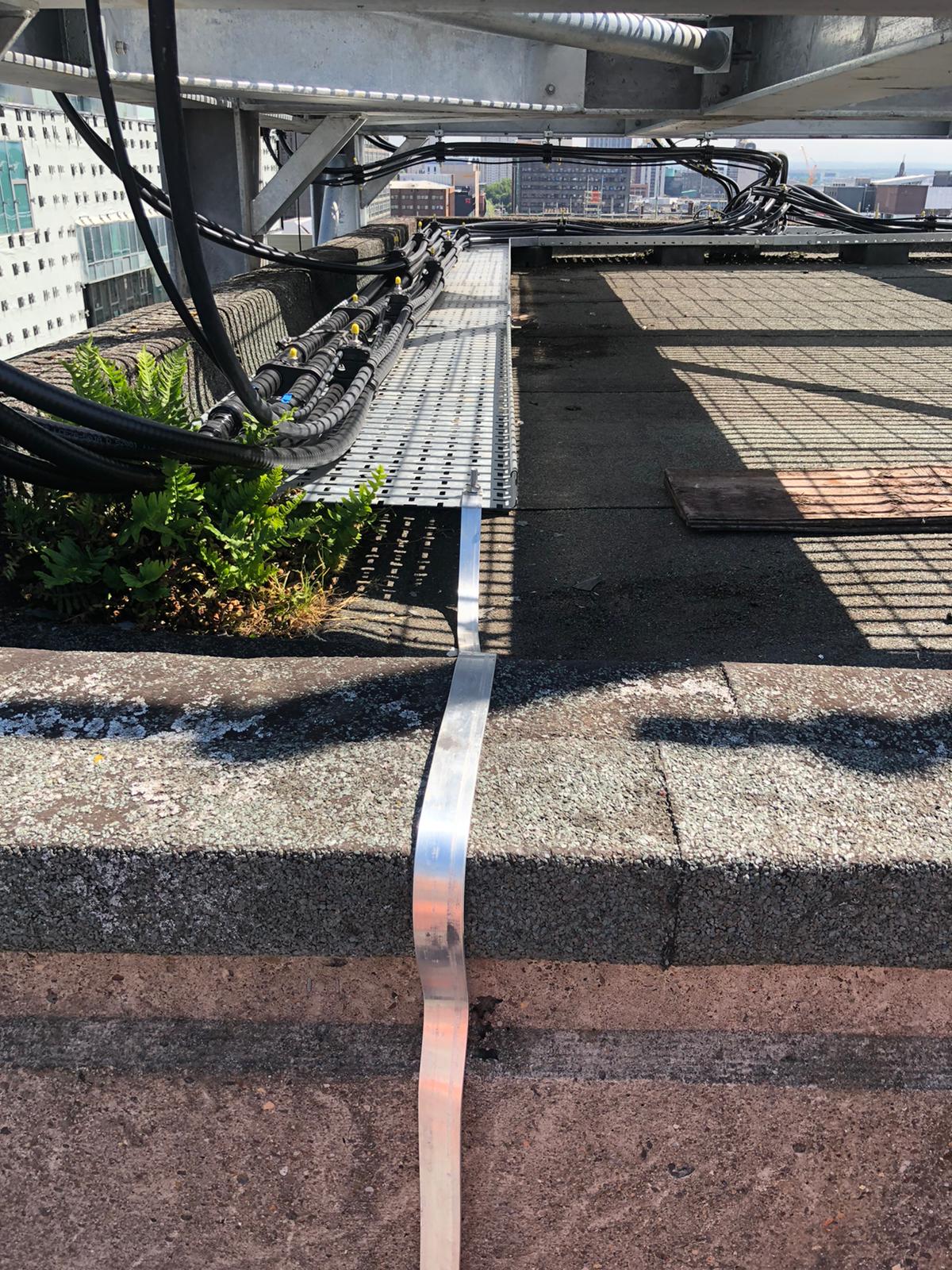

-1No- Main Support grillage steelwork for new antenna poles resin anchored to existing concrete plant room



-Fabrication and installation of 3No- secondary support frames for the main antenna poles

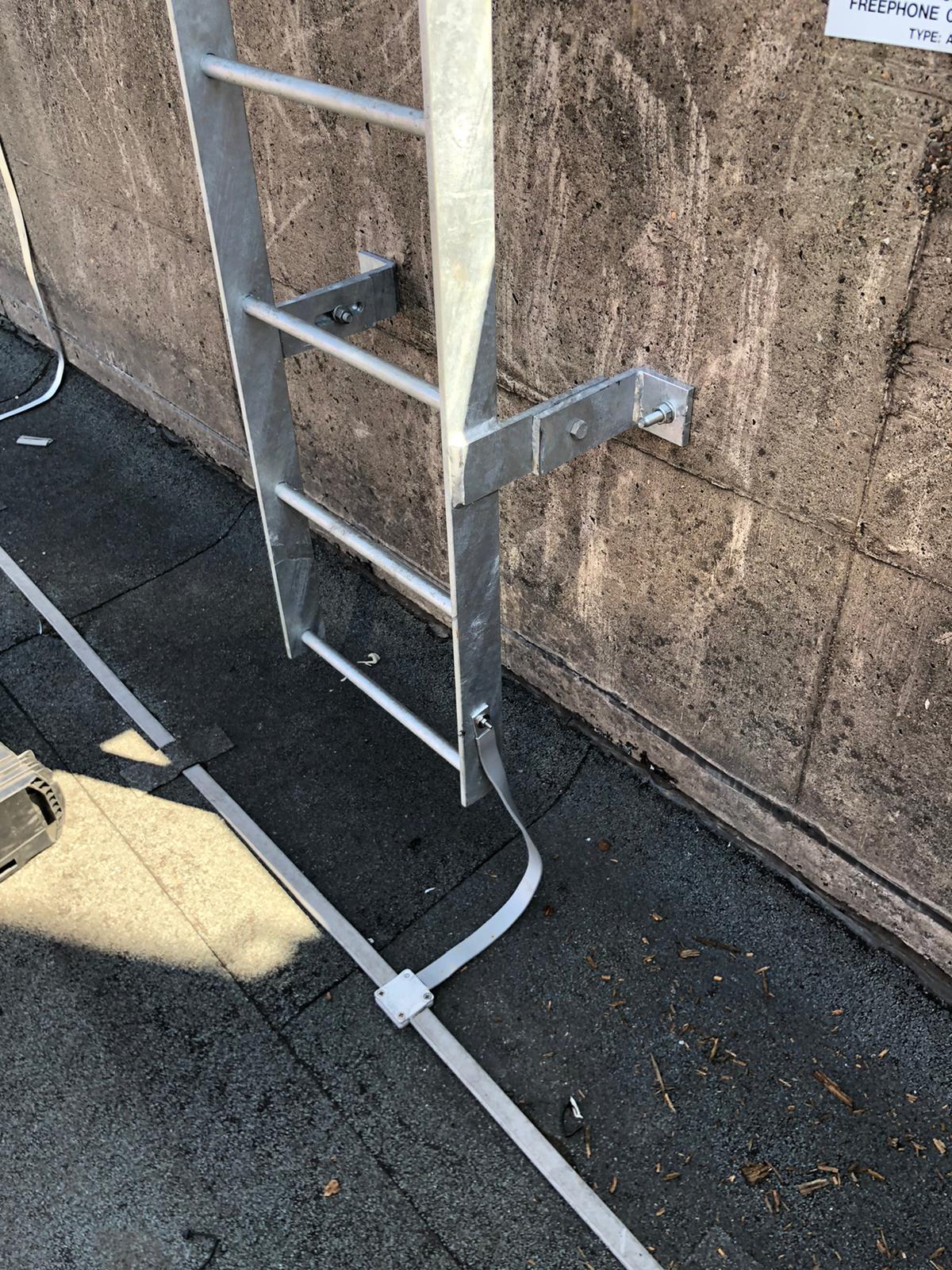

-Fabrication and installation of 1No- access ladder complete with hoops

-Flooring panels to be 25 x 5, 41/100 pattern, handrails standards 42 diameter complete with 42 mm rails, 150 x 6 flat kick plates. Works based on CE Class 2 specification



-Fabrication and installation of 3No- 114.3 x 5 mm antenna poles x 5-metres high complete with welded climbing rungs and splice connections plates

-Fabrication and installation of 6No- 100 x 50 PFC York brackets complete with 6No- 76.1 x 5 x 2500 mm poles



-Fabrication and installation 1No- 114.3 x 5 mm dish poles x 2500 mm long as per drawing 510 c/w diagonal tube bracings as detailed on drawing 510



-Fabrication and installation of 6No- 76.1 x 3.2 mm RRU poles x 1500 mm long as per drawing 501 secured to main grillage with base plates
