Case Study

Client: J Murphy & Sons


3No- lift shafts and stairs complete with lobbies, double span bridges with chamber, king-span cladding along with Rigidal single seam roofing, glazing, GRP treads and handrail systems.

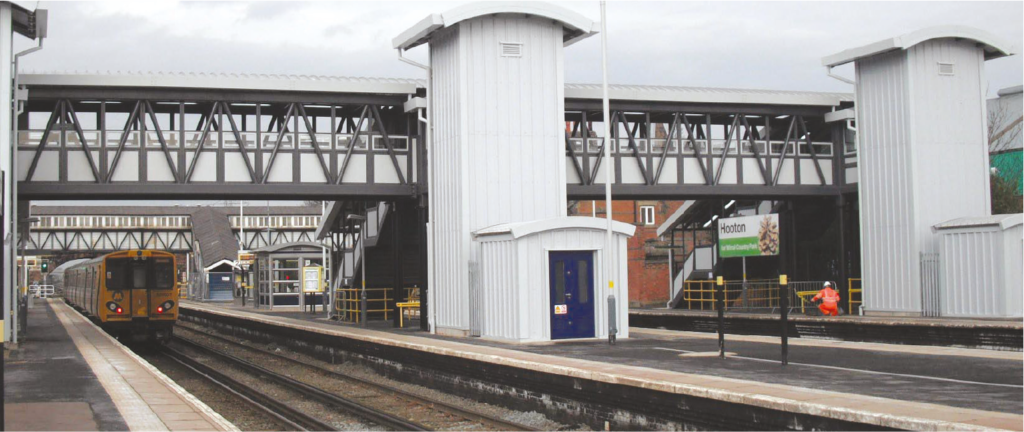

New build & installation of a double span 25m bridge with camber linking 3 platforms

-3No-lift shafts with 3No-stairs and motor rooms


-Rigidal roof cladding with Kingspan Optimo D on the lifts


-Glazed windows on the bridges with 9mm vitrified floor tiling

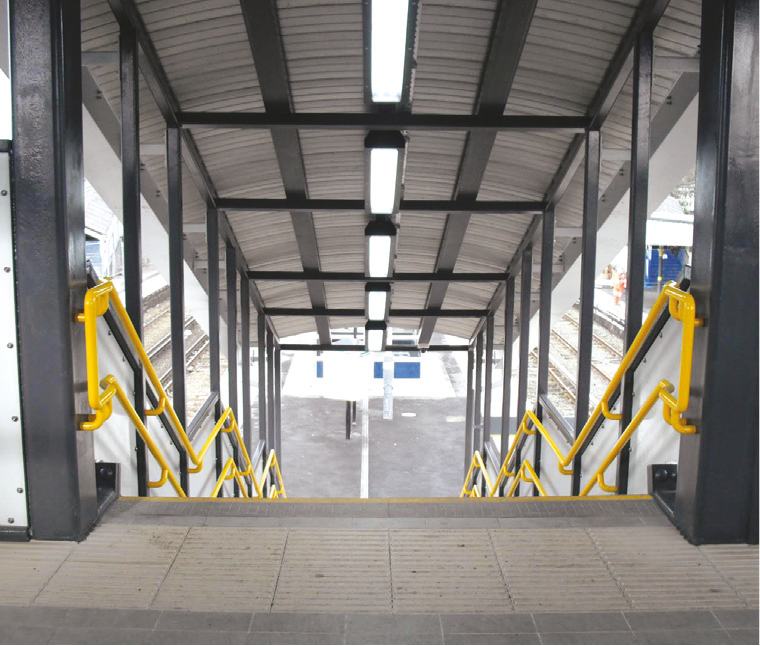

-Nickel cast nosings on the stairs with nylon coated stainless steel handrail

  • Steelwork along with link steelwork connections, DDA handrail, Corus cladding, clad roofing system with aluminium guttering. Painted to N1 specification
  • Design and fabrication of internal roofing system around new link connections including steelwork & DDA Nylon handrails
